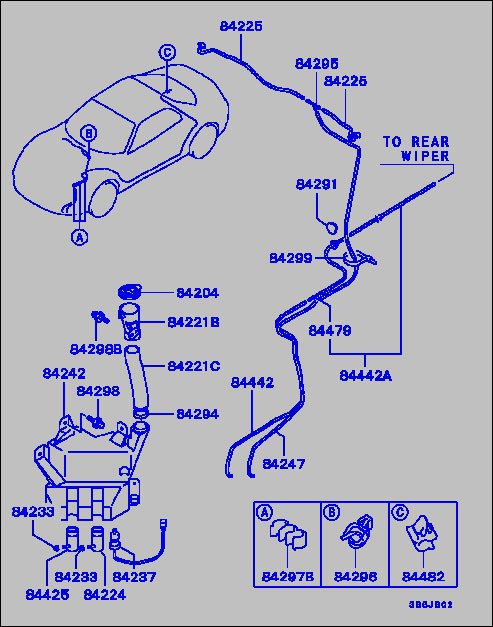

54-220-2 Windscreen Washer Assembly and Wiring
Model Legend
HNFHE - GP(MIVEC), 5FM/T, Feb96-May96
HNFH2D - GP (MIVEC), 5FM/T, May96-Feb97
HNFH3D - GP R(MIVEC), 5FM/T Feb97-
HNFH4D - GP R(MIVEC) 5FM/T, Nov97-
HNGHE - GPX(MIVEC), 5FM/T, Oct94-
HNGH2D - GPX COTY (MIVEC), 5FM/T, Apr95
HNHME - GR, 5FM/T, Oct94-
HNHM3D - GR, 5FM/T, May95-
HNHM4D - GR, 5FM/T, Feb96-
HNXME - GX, 5FM/T, Feb97-
HNXM4D - GX2, 5FM/T, Nov97-
HRFHE - GP(MIVEC), 4FA/T, Feb96-May96
HRFH2D - GP (MIVEC), 4FA/T, May96-Feb97
HRGHE - GPX(MIVEC), 4FA/T, Oct94-
HRGH2D - GPX COTY (MIVEC), 4FA/T, Apr95
HRHME - GR, 4FA/T, Oct94-
HRHM3D - GR, 4FA/T, May95-
HRHM4D - GR, 4FA/T, Feb96-
HYFH3D - GP R(MIVEC), 5FA/T, Feb97-
HYFH4D - GP R Aero(MIVEC), 5FA/T, Nov97-
HYGHE - GPX(MIVEC), 5FA/T, Feb97-
HYXME - GX, 5FA/T, Feb97-
HYXM4D - GX2, 5FA/T, Nov 97-
Parts List
84204 - CAP,WINDSHIELD WASHER TANK FILLER
84221B - HOSE,WINDSHIELD WASHER TANK FILLER
84221C - HOSE,WINDSHIELD WASHER TANK FILLER
84224 - MOTOR,WINSHIELD WASHER
84225 - NOZZLE,WINDSHIELD WASHER
84233 - GASKET,WASHER TANK INLET
MB617937 - USE MC845482 INSTEAD
84237 - SWITCH,WASHER TANK FLUID
84242 - TANK,WINDSHIELD WASHER
MR221625 - MODELS WITH REAR WIPER
MR221633 - MODELS WITHOUT REAR WIPER
84247 - TUBE,WINDSHIELD WASHER MOTOR SIDE
84291 - PLUG,WINDSHIELD WASHER
84294 - GROMMET,WINDSHIELD WASHER
84295 - JOINT,WINDSHIELD WASHER
84296 - CLIP,WINDSHIELD WASHER
84297B - CLAMP,WINDSHIELD WASHER
84298 - BOLT,WINDSHIELD WASHER
84298B - BOLT,WINDSHIELD WASHER
MS240121 - 10/1994-08/2000
MS240142 - 09/1994-9/1994
84299 - BAND,WINDSHIELD WASHER
84425 - MOTOR,RR WINDOW WASHER
84442 - TUBE,RR WINDOW WASHER
84442A - TUBE ASSY,RR WINDOW WASHER
84479 - JOINT,RR WINDOW WASHER
84482 - CLIP,RR WINDOW WASHER
