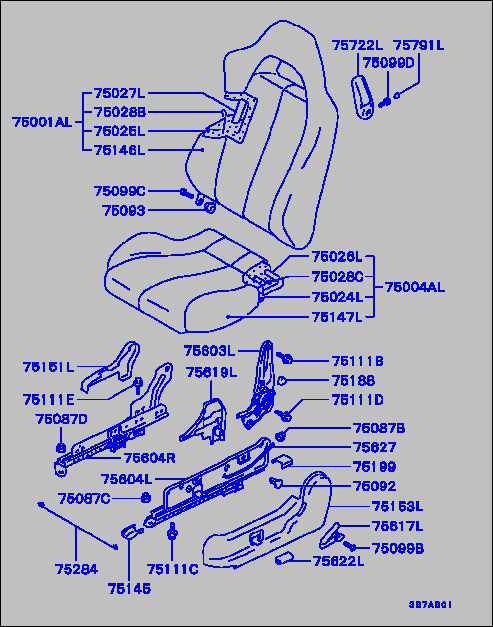

53-010-2 Passengers Seat Assembly

part breakdown

Model Legend

HNFHE - GP(MIVEC), 5FM/T, Feb96-May96

HNFH2D - GP (MIVEC), 5FM/T, May96-Feb97

HNFH3D - GP R(MIVEC), 5FM/T Feb97-

HNFH4D - GP R(MIVEC) 5FM/T, Nov97-

HNGHE - GPX(MIVEC), 5FM/T, Oct94-

HNGH2D - GPX COTY (MIVEC), 5FM/T, Apr95

HNHME - GR, 5FM/T, Oct94-

HNHM3D - GR, 5FM/T, May95-

HNHM4D - GR, 5FM/T, Feb96-

HNXME - GX, 5FM/T, Feb97-

HNXM4D - GX2, 5FM/T, Nov97-

HRFHE - GP(MIVEC), 4FA/T, Feb96-May96

HRFH2D - GP (MIVEC), 4FA/T, May96-Feb97

HRGHE - GPX(MIVEC), 4FA/T, Oct94-

HRGH2D - GPX COTY (MIVEC), 4FA/T, Apr95

HRHME - GR, 4FA/T, Oct94-

HRHM3D - GR, 4FA/T, May95-

HRHM4D - GR, 4FA/T, Feb96-

HYFH3D - GP R(MIVEC), 5FA/T, Feb97-

HYFH4D - GP R Aero(MIVEC), 5FA/T, Nov97-

HYGHE - GPX(MIVEC), 5FA/T, Feb97-

HYXME - GX, 5FA/T, Feb97-

HYXM4D - GX2, 5FA/T, Nov 97-

Parts List

75001AL - BACK ASSY,FR SEAT,LH

MR770603 - WHITE GPvR

MR777635 - SILVER GPvR

MR777633 - GPX,GX,GX2 - 02/1997-08/2000

MR761027 - GP

MR770604 - BLACK GPvR

MR743277 - EVERYTHING ELSE

MR743276 - GR - 04/95-09/95

MR777634 - GR - 02/1997-08/2000

75004AL - CUSHION ASSY,FR SEAT,LH

MR743273 - EVERYTHING ELSE

MR777627 - SILVER GPvR

MR777628 - GPX,GX,GX2 - 02/1997-08/2000

MR761025 - GP

MR770600 - BLACK GPvR

MR777629 - GR - 02/1997-08/2000

MR770599 - WHITE GPvR

MR743272 - GR - 04/95-09/95

75024L - PAD,FR SEAT CUSHION,LH

MR202215 - ALL MODELS

75025L - PAD,FR SEAT BACK,LH

MR202217 - ALL MODELS

75026L - FRAME,FR SEAT CUSHION,LH

MR202219 - ALL MODELS

75027L - FRAME,FR SEAT BACK,LH

MR202221 - ALL MODELS

75028B - WIRE,FR SEAT TRIMMING

MB090369 - 09/1994-04/1997

MR202673 - 09/1994-08/2000

75028C - WIRE,FR SEAT TRIMMING

MA167869 - 09/1994-08/2000

75087B - NUT,FR SEAT

MB902440 - ALL MODELS

75087C - NUT,FR SEAT

MS440504 - ALL MODELS

75087D - NUT,FR SEAT

MU431010 - ALL MODELS

75092 - CLIP,FR SEAT

MB648995 - ALL MODELS

75093 - BUSHING,FR SEAT

MB158706 - ALL MODELS

75099B - SCREW,FR SEAT

MB410568 - ALL MODELS

75099C - SCREW,FR SEAT

MB902325 - ALL MODELS

75099D - SCREW,FR SEAT

MS350110 - ALL MODELS

75111B - BOLT,FR SEAT

MB144649 - ALL MODELS

75111C - BOLT,FR SEAT

MF240051 - ALL MODELS

75111D - BOLT,FR SEAT

MF241279 - ALL MODELS

75111E - BOLT,FR SEAT

MS240189 - ALL MODELS

75145 - COVER,FR SEAT ANCHOR

MB726461 - ALL MODELS

75146L - COVER,FR SEAT BACK,LH

MR770612 - BLACK GPvR

MR761031 - GP

MR777645 - GR - 02/1997-08/2000

MR770611 - WHITE GPvR

MR743295 - EVERYTHING ELSE

MR743294 - GR - 04/95-09/95

MR777646 - GPX,GX,GX2 - 02/1997-08/2000

MR777647 - SILVER GPvR

75147L - COVER,FR SEAT CUSHION,LH

MR761029 - GP

MR777639 - SILVER GPvR

MR777641 - GPX,GX,GX2 - 02/1997-08/2000

MR743291 - EVERYTHING ELSE

MR743290 - GR - 04/95-09/95

MR777640 - GR - 02/1997-08/2000

MR770607 - WHITE GPvR

MR770608 - BLACK GPvR

75151L - COVER,FR SEAT HINGE,LH

MR743284 - ALL MODELS

75153L - COVER,FR SEAT SIDE SHIELD,LH

MR743280 - ALL MODELS

75188 - KNOB,FR SEAT WALK-IN

MR743268 - ALL MODELS

75199 - COVER,FR SEAT ANCHOR,RR

MR734322 - ALL MODELS

75284 - WIRE,FR SEAT

MR202185 - ALL MODELS

75603L - ADJUSTER,FR SEAT RECLINING,LH

MB874487 - ALL MODELS

75604L - ADJUSTER, FR SEAT SLIDE LH

MR202031 - ALL MODELS

75604R - ADJUSTER, FR SEAT SLIDE RH

MR202032 - ALL MODELS

75617L - KNOB,FR SEAT RECLINER,LH

MB725069 - ALL MODELS

75619L - COVER,FR SEAT RECLINER,LWR LH

MR743282 - ALL MODELS

75622L - KNOB,FR SEAT SLIDE ADJUSTER,LH

MR743269 - ALL MODELS

75627 - ROD,FR SEAT SLIDE ADJUSTER

MR202186 - ALL MODELS

75722L - GUIDE,FR SEAT BELT,LH

MR743286 - ALL MODELS

75791L - CAP, FR SEAT BELT LH

MR743288 - ALL MODELS
