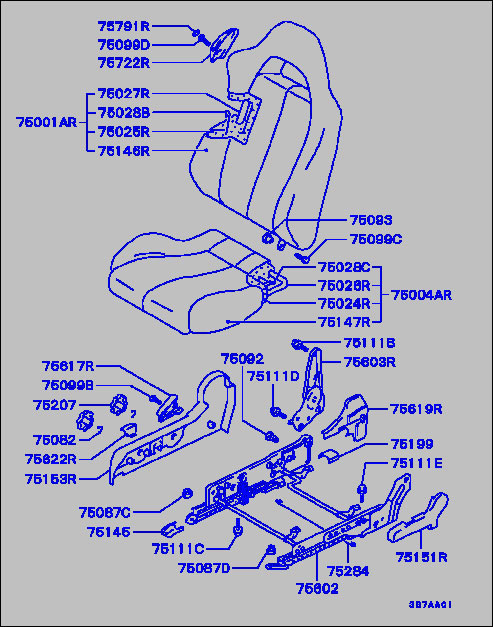

53-010-1 Drivers Seat Assembly

part breakdown

Model Legend

HNFHE - GP(MIVEC), 5FM/T, Feb96-May96

HNFH2D - GP (MIVEC), 5FM/T, May96-Feb97

HNFH3D - GP R(MIVEC), 5FM/T Feb97-

HNFH4D - GP R(MIVEC) 5FM/T, Nov97-

HNGHE - GPX(MIVEC), 5FM/T, Oct94-

HNGH2D - GPX COTY (MIVEC), 5FM/T, Apr95

HNHME - GR, 5FM/T, Oct94-

HNHM3D - GR, 5FM/T, May95-

HNHM4D - GR, 5FM/T, Feb96-

HNXME - GX, 5FM/T, Feb97-

HNXM4D - GX2, 5FM/T, Nov97-

HRFHE - GP(MIVEC), 4FA/T, Feb96-May96

HRFH2D - GP (MIVEC), 4FA/T, May96-Feb97

HRGHE - GPX(MIVEC), 4FA/T, Oct94-

HRGH2D - GPX COTY (MIVEC), 4FA/T, Apr95

HRHME - GR, 4FA/T, Oct94-

HRHM3D - GR, 4FA/T, May95-

HRHM4D - GR, 4FA/T, Feb96-

HYFH3D - GP R(MIVEC), 5FA/T, Feb97-

HYFH4D - GP R Aero(MIVEC), 5FA/T, Nov97-

HYGHE - GPX(MIVEC), 5FA/T, Feb97-

HYXME - GX, 5FA/T, Feb97-

HYXM4D - GX2, 5FA/T, Nov 97-

Parts List

75001AR - BACK ASSY,FR SEAT,RH

MR770606 - BLACK GPvR

MR770605 - WHITE GPvR

MR761028 - GP

MR777636 - GPX,GX,GX2 - 02/1997-08/2000

MR777637 - GR - 02/1997-08/2000

MR777638 - GPvR SILVER

MR743278 - GR - 04/95-09/95

MR743279 - EVERYTHING ELSE

75004AR - CUSHION ASSY,FR SEAT,RH

MR743274 - GP

MR743275 - EVERYTHING ELSE

MR777630 - SILVER GPvR

MR777631 - GPX,GX,GX2 - 02/1997-08/2000

MR770602 - BLACK GPvR

MR770601 - WHITE GPvR

MR761026 - GR - 04/95-09/95

MR777632 - GR - 02/1997-08/2000

75024R - PAD,FR SEAT CUSHION,RH

MR202216 - ALL MODELS

75025R - PAD,FR SEAT BACK,RH

MR202218 - ALL MODELS

75026R - FRAME,FR SEAT CUSHION,RH

MR202219 - ALL MODELS

75028B - WIRE,FR SEAT TRIMMING

MB090369 - 09/1994-04/1997

MR202673 - 09/1994-08/2000

75028C - WIRE,FR SEAT TRIMMING

MA167869 - 09/1994-08/2000

75082 - SNAP RING,FR SEAT

MR140827 - ALL MODELS

75087C - NUT,FR SEAT

MS440504 - ALL MODELS

75087D - NUT,FR SEAT

MU431010 - ALL MODELS

75092 - CLIP,FR SEAT

MB648995 - ALL MODELS

75093 - BUSHING,FR SEAT

MB158706 - ALL MODELS

75099B - SCREW,FR SEAT

MB410568 - ALL MODELS

75099C - SCREW,FR SEAT

MB902325 - ALL MODELS

75099D - SCREW,FR SEAT

MS350110 - ALL MODELS

75111B - BOLT,FR SEAT

MB144649 - ALL MODELS

75111C - BOLT,FR SEAT

MF240051 - ALL MODELS

75111D - BOLT,FR SEAT

MF241279 - ALL MODELS

75111E - BOLT,FR SEAT

MS240189 - ALL MODELS

75145 - COVER,FR SEAT ANCHOR

MB726461 - ALL MODELS

75146R - COVER,FR SEAT BACK,RH

MR777650 - SILVER GPvR

MR777648 - GPX,GX,GX2 - 02/1997-08/2000

MR770613 - WHITE GPvR

MR770614 - BLACK GPvR

MR777649 - GR - 02/1997-08/2000

MR743296 - GR - 04/95-09/95

MR743297 - EVERYTHING ELSE

MR761032 - GP

75147R - COVER,FR SEAT CUSHION,RH

MR770609 - WHITE GPvR

MR761030 - GP

MR777643 - GPX,GX,GX2 - 02/1997-08/2000

MR770610 - WHITE GPvR

MR777644 - GR - 02/1997-08/2000

MR743293 - EVERYTHING ELSE

MR743292 - GR - 04/95-09/95

MR777642 - SILVER GPvR

75151R - COVER,FR SEAT HINGE,RH

MR743285 - ALL MODELS

75153R - COVER,FR SEAT SIDE SHIELD,RH

MR743281 - ALL MODELS

75199 - COVER,FR SEAT ANCHOR,RR

MR734322 - ALL MODELS

75207 - LEVER,FR SEAT

MR743271 - 09/1994-04/1997

MR787573 - 05/1997-08/2000

75284 - WIRE,FR SEAT

MR202185 - ALL MODELS

75602 - ADJUSTER, FR SEAT HEIGHT

MR202034 - ALL MODELS

75603R - ADJUSTER,FR SEAT RECLINING,RH

MB592749 - ALL MODELS

75617R - KNOB,FR SEAT RECLINER,RH

MB725072 - ALL MODELS

75619R - COVER,FR SEAT RECLINER,LWR RH

MR743283 - ALL MODELS

75622R - KNOB,FR SEAT SLIDE ADJUSTER,RH

MR743270 - ALL MODELS

75722R - GUIDE,FR SEAT BELT,RH

MR743287 - ALL MODELS

75791R - CAP, FR SEAT BELT RH

MR743289 - ALL MODELS
