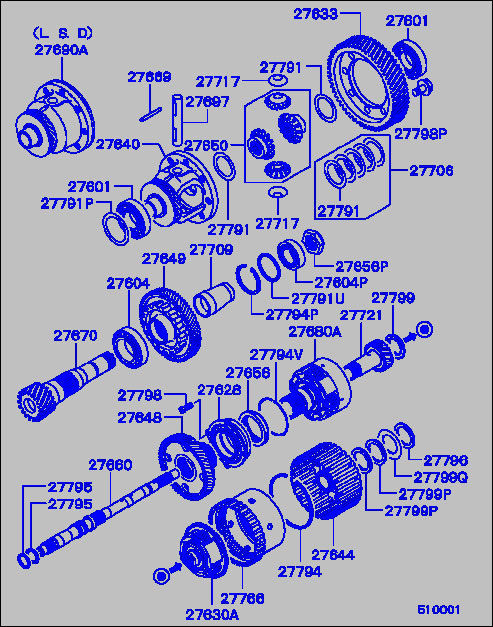

23-150-1 A/T Gears and Governer 4sp -12/97

part breakdown

Model Legend

HNFHE - GP(MIVEC), 5FM/T, Feb96-May96

HNFH2D - GP (MIVEC), 5FM/T, May96-Feb97

HNFH3D - GP R(MIVEC), 5FM/T Feb97-

HNFH4D - GP R(MIVEC) 5FM/T, Nov97-

HNGHE - GPX(MIVEC), 5FM/T, Oct94-

HNGH2D - GPX COTY (MIVEC), 5FM/T, Apr95

HNHME - GR, 5FM/T, Oct94-

HNHM3D - GR, 5FM/T, May95-

HNHM4D - GR, 5FM/T, Feb96-

HNXME - GX, 5FM/T, Feb97-

HNXM4D - GX2, 5FM/T, Nov97-

HRFHE - GP(MIVEC), 4FA/T, Feb96-May96

HRFH2D - GP (MIVEC), 4FA/T, May96-Feb97

HRGHE - GPX(MIVEC), 4FA/T, Oct94-

HRGH2D - GPX COTY (MIVEC), 4FA/T, Apr95

HRHME - GR, 4FA/T, Oct94-

HRHM3D - GR, 4FA/T, May95-

HRHM4D - GR, 4FA/T, Feb96-

HYFH3D - GP R(MIVEC), 5FA/T, Feb97-

HYFH4D - GP R Aero(MIVEC), 5FA/T, Nov97-

HYGHE - GPX(MIVEC), 5FA/T, Feb97-

HYXME - GX, 5FA/T, Feb97-

HYXM4D - GX2, 5FA/T, Nov 97-

Parts List

25887 - HOSE,T/M OIL COOLER LINE

MR160231

MR160234

MR340454

MR239694

25893 - CLAMP,T/M OIL COOLER LINE

MR281416

MR204390

MS660240

27601 - BEARING, A/T DIFF CASE

MD710663 - ALL MODELS

27601P

No matching part numbers found

27604 - BEARING,A/T OUTPUT SHAFT

MD756138

MD754594

27604P

No matching part numbers found

27628 - BEARING, T/F DRIVE GEAR

MD759808 - ALL MODELS

27630A - CARRIER ASSY,A/T O/D PLANETARY

MD758111

MD760812

27633 - GEAR, A/T DIFF DRIVE

MD757190

MD757594

MD757593

MD760946

27640 - CASE, A/T DIFF

MD755473

MD755470

MD770937

27644 - GEAR,A/T PLANETARY REV SUN

MD761010

MD758249

27648 - GEAR,T/F DRIVE

MD761930

MD759807

27649 - GEAR, T/F DRIVE

MD761931

MD758890

MR498327

27650 - GEAR KIT, A/T DIFF

MD762902

MD748538

MD748541

27656 - NUT, A/T POWER TRAIN

MD755333

MD761024

MD755407

27656P

No matching part numbers found

27660 - SHAFT,A/T INPUT

MD758253 - ALL MODELS

27669 - PIN, A/T POWER TRAIN

MD712247

MD762419

MD706557

27670 - SHAFT,A/T OUTPUT

MD758733

MD758732

27680A - CARRIER ASSY,A/T OUTPUT PLANETARY

MD758261

MD760930

MR453051

MR430696

MD760625

27690A - DIFFERENTIAL ASSEMBLY, a/T LIMITED SLIP DIFF

MD735332

MD770978

27697 - SHAFT, A/T DIFF PINION

MD704947

MD722632

27706 - SPACER SET, A/T DIFF SIDE GEAR

MD997795 - ALL MODELS

27709 - COLLAR, A/T POWER TRAIN

MD755794 - ALL MODELS

27717 - WASHER, A/T POWER TRAIN

MD722981 - ALL MODELS

27721 - GEAR,A/T U/D SUN

MD758786

MD760940

27766 - GEAR,A/T LOW & REV ANNULUS

MD758248

MD761012

MD760626

27791P

No matching part numbers found

27791U

No matching part numbers found

27794 - SNAP RING,A/T POWER TRAIN

MD755227

MR399568

MD755885

MD761027

MD761025

MD761097

27794P

No matching part numbers found

27795 - SEAL RING,A/T POWER TRAIN

MD722551 - ALL MODELS

27796 - RACE,A/T POWER TRAIN

MD754796

MD754794

MD724358

MD754797

MD723064

MD723065

MD707268

MD754798

MD759681

MD761022

MD754795

MD707267

27798 - BOLT, A/T POWER TRAIN

MD763079

MD759105

MD952231

MD040557

MF140221

27798P

No matching part numbers found

27799 - THRUST BEARING,A/T POWER TRAIN

MD754595

MR305718

MD757647

MD762027

MD761026

MD756846

27799P

No matching part numbers found

27799Q

No matching part numbers found
