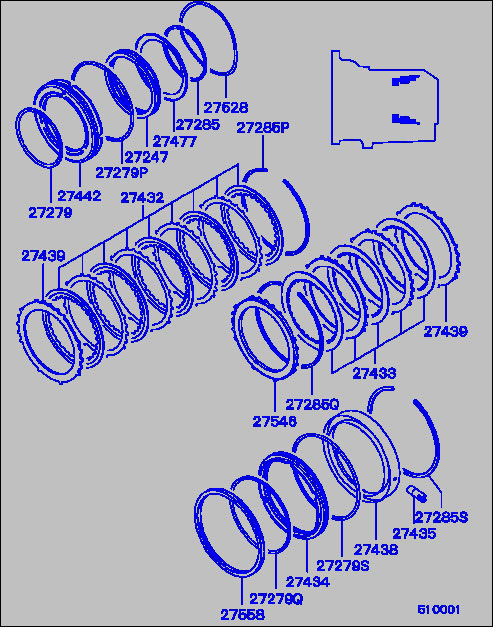

23-140-1 A/T Disc Kit Assembly
Model Legend
HNFHE - GP(MIVEC), 5FM/T, Feb96-May96
HNFH2D - GP (MIVEC), 5FM/T, May96-Feb97
HNFH3D - GP R(MIVEC), 5FM/T Feb97-
HNFH4D - GP R(MIVEC) 5FM/T, Nov97-
HNGHE - GPX(MIVEC), 5FM/T, Oct94-
HNGH2D - GPX COTY (MIVEC), 5FM/T, Apr95
HNHME - GR, 5FM/T, Oct94-
HNHM3D - GR, 5FM/T, May95-
HNHM4D - GR, 5FM/T, Feb96-
HNXME - GX, 5FM/T, Feb97-
HNXM4D - GX2, 5FM/T, Nov97-
HRFHE - GP(MIVEC), 4FA/T, Feb96-May96
HRFH2D - GP (MIVEC), 4FA/T, May96-Feb97
HRGHE - GPX(MIVEC), 4FA/T, Oct94-
HRGH2D - GPX COTY (MIVEC), 4FA/T, Apr95
HRHME - GR, 4FA/T, Oct94-
HRHM3D - GR, 4FA/T, May95-
HRHM4D - GR, 4FA/T, Feb96-
HYFH3D - GP R(MIVEC), 5FA/T, Feb97-
HYFH4D - GP R Aero(MIVEC), 5FA/T, Nov97-
HYGHE - GPX(MIVEC), 5FA/T, Feb97-
HYXME - GX, 5FA/T, Feb97-
HYXM4D - GX2, 5FA/T, Nov 97-
Parts List
27247 - SPRING,A/T L-R BRAKE PISTON RETURN
27279 - D-RING,A/T BRAKE
27279P
No matching part numbers found
27279Q
No matching part numbers found
27279S
No matching part numbers found
27285 - SNAP RING,A/T BRAKE
27285P
No matching part numbers found
27285Q
No matching part numbers found
27285S
No matching part numbers found
27432 - DISC KIT,A/T L-R BRAKE
27433 - DISC KIT,A/T 2ND BRAKE
27434 - PISTON,A/T 2ND BRAKE
27435 - OIL SEAL,A/T 2ND BRAKE RETAINER
27438 - RETAINER,A/T 2ND BRAKE
27439 - PLATE,A/T BRAKE PRESSURE
27442 - PISTON,A/T L-R BRAKE
27477 - RETAINER,A/T L-R BRAKE SPRING
27528 - SPRING,A/T L-R BRAKE WAVE
27546 - PLATE,A/T BRAKE REACTION
27558 - SPRING,A/T 2ND BRAKE PISTON RETURN
