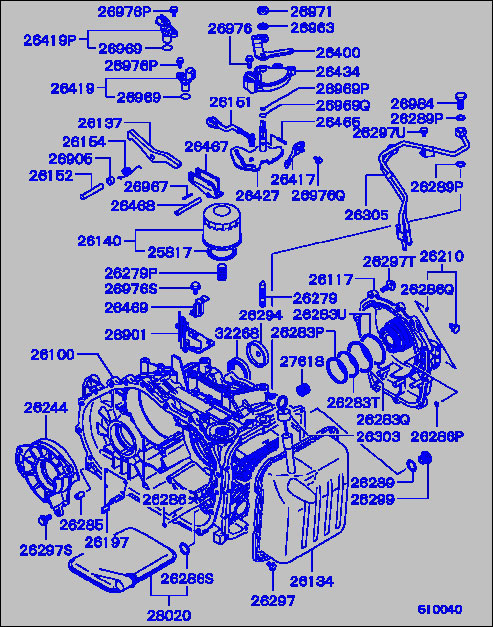

23-110-4 A/T Case Assembly

part breakdown

Model Legend

HNFHE - GP(MIVEC), 5FM/T, Feb96-May96

HNFH2D - GP (MIVEC), 5FM/T, May96-Feb97

HNFH3D - GP R(MIVEC), 5FM/T Feb97-

HNFH4D - GP R(MIVEC) 5FM/T, Nov97-

HNGHE - GPX(MIVEC), 5FM/T, Oct94-

HNGH2D - GPX COTY (MIVEC), 5FM/T, Apr95

HNHME - GR, 5FM/T, Oct94-

HNHM3D - GR, 5FM/T, May95-

HNHM4D - GR, 5FM/T, Feb96-

HNXME - GX, 5FM/T, Feb97-

HNXM4D - GX2, 5FM/T, Nov97-

HRFHE - GP(MIVEC), 4FA/T, Feb96-May96

HRFH2D - GP (MIVEC), 4FA/T, May96-Feb97

HRGHE - GPX(MIVEC), 4FA/T, Oct94-

HRGH2D - GPX COTY (MIVEC), 4FA/T, Apr95

HRHME - GR, 4FA/T, Oct94-

HRHM3D - GR, 4FA/T, May95-

HRHM4D - GR, 4FA/T, Feb96-

HYFH3D - GP R(MIVEC), 5FA/T, Feb97-

HYFH4D - GP R Aero(MIVEC), 5FA/T, Nov97-

HYGHE - GPX(MIVEC), 5FA/T, Feb97-

HYXME - GX, 5FA/T, Feb97-

HYXM4D - GX2, 5FA/T, Nov 97-

Parts List

25817 - GASKET, T/M OIL FILTER

MD622034 - ALL MODELS

26100 - CASE, A/T

MR430286

MR410266

MR486894

MR430592

MD761807

MD759395

26117 - COVER,A/T CASE,RR

MD763209

MD756819

MD763204

26134 - OIL PAN,A/T CASE

MD758639 - ALL MODELS

26137 - PAWL,A/T CASE PARKING

MD758101

MD761307

MD760714

26140 - OIL FILTER A/T CASE

MD752072 - ALL MODELS

26151 - ROD,A/T PARKING PAWL

MD757438

MD760718

26152 - SHAFT,A/T PARKING PAWL

MD760619

MD759486

26154 - SPRING,A/T CASE PARKING PAWL

MD755088

MD761083

26197 - OIL GUIDE, A/T CASE

MD761255

MD757015

26210 - PLUG KIT,A/T CASE

MD757991 - ALL MODELS

26244 - RETAINER,A/T OUTPUT SHAFT BEARING

MD757510

MD761638

26279 - STUD,A/T CASE

MD751929

MD192439

26279P

No matching part numbers found

26283P

No matching part numbers found

26283Q

No matching part numbers found

26283T

No matching part numbers found

26283U

No matching part numbers found

26285

No matching part numbers found

26286 - O-RING,A/T CASE

MD622023

MD756675

MD756673

26286P

No matching part numbers found

26286Q

No matching part numbers found

26286S

No matching part numbers found

26289 - GASKET,A/T CASE

MF660035

MF660064

26289P

No matching part numbers found

26291 - JOINT,A/T CASE

MD707199

MD761440

26294 - CAP,A/T CASE

MD750787

MD758173

26297 - BOLT,A/T CASE

MD759832

MR553872

MF241308

MF140264

MF140266

MF140262

MF140225

26297S

No matching part numbers found

26297T

No matching part numbers found

26297U

No matching part numbers found

26299 - PLUG,A/T CASE

MB569372 - ALL MODELS

26303 - GAUGE,A/T OIL LEVEL

MD759980

MD763339

MD758924

26305 - TUBE, A/T OIL COOLER FEED

MD757720

MD761328

MD761808

MD760154

26400 - LEVER,A/T MANUAL CONTROL

MD761677

MD756873

26417 - DETENT,A/T MANUAL CONTROL SHAFT

MD756868

MD759093

MR515066

26419 - SENSOR,A/T SPEED

MD759018

MD758942

MD759164

MD759163

26419P

No matching part numbers found

26427 - SHAFT,A/T MANUAL CONTROL LEVER

MD756869 - ALL MODELS

26434 - SWITCH,A/T CASE INHIBITOR

MD757783 - ALL MODELS

26449 - PLATE, A/T MANUAL CONTROL SHAFT

MD757429 - ALL MODELS

26465

No matching part numbers found

26467 - SUPPORT,A/T PARKING ROLLER

MD755083 - ALL MODELS

26468 - SHAFT,A/T PARKING ROLLER SUPPORT

MD759487 - ALL MODELS

26469 - BRACKET,A/T HARNESS

MD760601 - ALL MODELS

26901 - BRACKET,A/T CONTROL CABLE SUPPORT

MD761976

MD759593

26905 - SPACER,A/T CONTROL EQUIP

MD753781 - ALL MODELS

26963

No matching part numbers found

26967 - SPRING PIN,A/T CONTROL EQUIP

MF472540 - ALL MODELS

26969 - O-RING,A/T CONTROL EQUIP

MD622019

MD726966

MD622021

26969P

No matching part numbers found

26969Q

No matching part numbers found

26969S

No matching part numbers found

26971

No matching part numbers found

26976

No matching part numbers found

26976P

No matching part numbers found

26976Q

No matching part numbers found

26976S

No matching part numbers found

26984 - EYEBOLT,A/T

MD757705 - ALL MODELS

27618 - BEARING, A/T INPUT SHAFT RR

MD752039

MR446687

28020 - OIL FILTER,A/T VALVE BODY

MD758691 - ALL MODELS

32268 - OIL SEAL, T/M FR DIFF CASE

MD755526

MD755904
