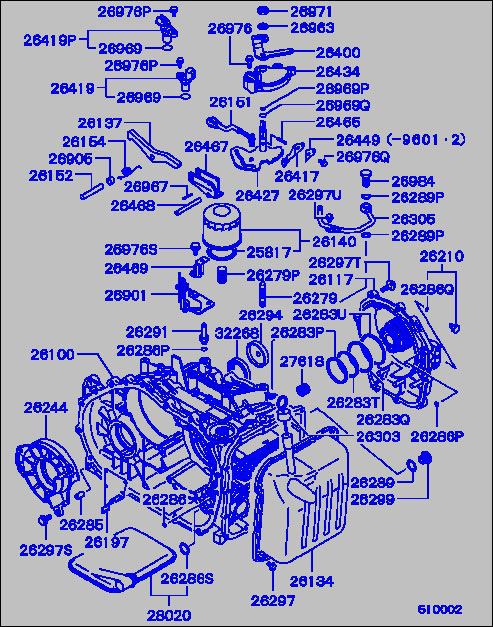

23-110-3 A/T Case Assembly 2
Model Legend
HNFHE - GP(MIVEC), 5FM/T, Feb96-May96
HNFH2D - GP (MIVEC), 5FM/T, May96-Feb97
HNFH3D - GP R(MIVEC), 5FM/T Feb97-
HNFH4D - GP R(MIVEC) 5FM/T, Nov97-
HNGHE - GPX(MIVEC), 5FM/T, Oct94-
HNGH2D - GPX COTY (MIVEC), 5FM/T, Apr95
HNHME - GR, 5FM/T, Oct94-
HNHM3D - GR, 5FM/T, May95-
HNHM4D - GR, 5FM/T, Feb96-
HNXME - GX, 5FM/T, Feb97-
HNXM4D - GX2, 5FM/T, Nov97-
HRFHE - GP(MIVEC), 4FA/T, Feb96-May96
HRFH2D - GP (MIVEC), 4FA/T, May96-Feb97
HRGHE - GPX(MIVEC), 4FA/T, Oct94-
HRGH2D - GPX COTY (MIVEC), 4FA/T, Apr95
HRHME - GR, 4FA/T, Oct94-
HRHM3D - GR, 4FA/T, May95-
HRHM4D - GR, 4FA/T, Feb96-
HYFH3D - GP R(MIVEC), 5FA/T, Feb97-
HYFH4D - GP R Aero(MIVEC), 5FA/T, Nov97-
HYGHE - GPX(MIVEC), 5FA/T, Feb97-
HYXME - GX, 5FA/T, Feb97-
HYXM4D - GX2, 5FA/T, Nov 97-
Parts List
25817 - GASKET, T/M OIL FILTER
26100 - CASE, A/T
26117 - COVER,A/T CASE,RR
26134 - OIL PAN,A/T CASE
26137 - PAWL,A/T CASE PARKING
26140 - OIL FILTER A/T CASE
26151 - ROD,A/T PARKING PAWL
26152 - SHAFT,A/T PARKING PAWL
26154 - SPRING,A/T CASE PARKING PAWL
26197 - OIL GUIDE, A/T CASE
26210 - PLUG KIT,A/T CASE
26244 - RETAINER,A/T OUTPUT SHAFT BEARING
26279 - STUD,A/T CASE
26279P
No matching part numbers found
26283P
No matching part numbers found
26283Q
No matching part numbers found
26283T
No matching part numbers found
26285
No matching part numbers found
26286 - O-RING,A/T CASE
26286P
No matching part numbers found
26286Q
No matching part numbers found
26286S
No matching part numbers found
26289 - GASKET,A/T CASE
26289P
No matching part numbers found
26291 - JOINT,A/T CASE
26294 - CAP,A/T CASE
26297 - BOLT,A/T CASE
26297S
No matching part numbers found
26297T
No matching part numbers found
26297U
No matching part numbers found
26299 - PLUG,A/T CASE
26303 - GAUGE,A/T OIL LEVEL
26305 - TUBE, A/T OIL COOLER FEED
26400 - LEVER,A/T MANUAL CONTROL
26417 - DETENT,A/T MANUAL CONTROL SHAFT
26419 - SENSOR,A/T SPEED
26419P
No matching part numbers found
26427 - SHAFT,A/T MANUAL CONTROL LEVER
26434 - SWITCH,A/T CASE INHIBITOR
26449 - PLATE, A/T MANUAL CONTROL SHAFT
26465
No matching part numbers found
26467 - SUPPORT,A/T PARKING ROLLER
26468 - SHAFT,A/T PARKING ROLLER SUPPORT
26469 - BRACKET,A/T HARNESS
26901 - BRACKET,A/T CONTROL CABLE SUPPORT
26905 - SPACER,A/T CONTROL EQUIP
26963
No matching part numbers found
26967 - SPRING PIN,A/T CONTROL EQUIP
26969 - O-RING,A/T CONTROL EQUIP
26969P
No matching part numbers found
26969Q
No matching part numbers found
26969S
No matching part numbers found
26971
No matching part numbers found
26976
No matching part numbers found
26976P
No matching part numbers found
26976Q
No matching part numbers found
26976S
No matching part numbers found
26984 - EYEBOLT,A/T
27618 - BEARING, A/T INPUT SHAFT RR
28020 - OIL FILTER,A/T VALVE BODY
32268 - OIL SEAL, T/M FR DIFF CASE
