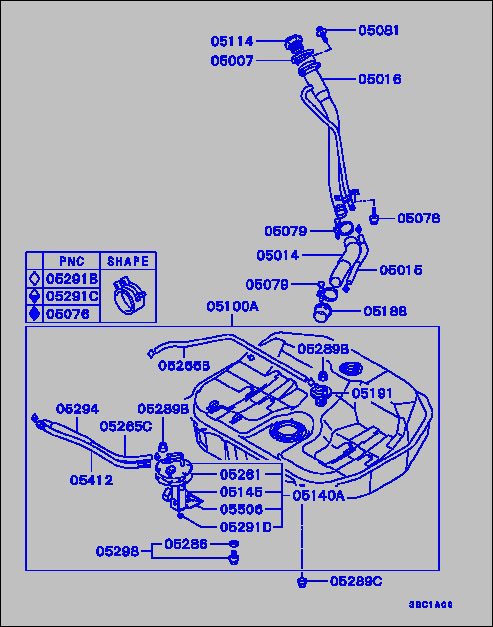

13-010 Fuel Tank Subsystem

part breakdown

Model Legend

HNFHE - GP(MIVEC), 5FM/T, Feb96-May96

HNFH2D - GP (MIVEC), 5FM/T, May96-Feb97

HNFH3D - GP R(MIVEC), 5FM/T Feb97-

HNFH4D - GP R(MIVEC) 5FM/T, Nov97-

HNGHE - GPX(MIVEC), 5FM/T, Oct94-

HNGH2D - GPX COTY (MIVEC), 5FM/T, Apr95

HNHME - GR, 5FM/T, Oct94-

HNHM3D - GR, 5FM/T, May95-

HNHM4D - GR, 5FM/T, Feb96-

HNXME - GX, 5FM/T, Feb97-

HNXM4D - GX2, 5FM/T, Nov97-

HRFHE - GP(MIVEC), 4FA/T, Feb96-May96

HRFH2D - GP (MIVEC), 4FA/T, May96-Feb97

HRGHE - GPX(MIVEC), 4FA/T, Oct94-

HRGH2D - GPX COTY (MIVEC), 4FA/T, Apr95

HRHME - GR, 4FA/T, Oct94-

HRHM3D - GR, 4FA/T, May95-

HRHM4D - GR, 4FA/T, Feb96-

HYFH3D - GP R(MIVEC), 5FA/T, Feb97-

HYFH4D - GP R Aero(MIVEC), 5FA/T, Nov97-

HYGHE - GPX(MIVEC), 5FA/T, Feb97-

HYXME - GX, 5FA/T, Feb97-

HYXM4D - GX2, 5FA/T, Nov 97-

Parts List

05007 - GASKET,FUEL FILLER NECK

MB504238 - ALL MODELS

05014 - HOSE,FUEL FILLER

MR134436 - ALL MODELS

05015 - HOSE,FUEL FILLER NECK BREATHER

MR134437 - ALL MODELS

05016 - NECK,FUEL FILLER

MR134453 - ALL MODELS

05076 - CLIP,FUEL FILLER PIPE

MS660173 - ALL MODELS

05078 - BOLT,FUEL FILLER PIPE

MS240121 - ALL MODELS

05079 - CLAMP,FUEL FILLER PIPE

MS660372 - ALL MODELS

05081 - SCREW,FUEL FILLER PIPE

MR340031 - ALL MODELS

MB400510 - USE MR340031 INSTEAD

05100A - FUEL TANK ASSY

MR134423 - USE MR134424 INSTEAD

MR271470 - 02/1997-08/2000

MR134424 - 09/1994-01/1997

05114 - CAP,FUEL TANK

MB595538 - USE MN120695 INSTEAD

MN120695 - ALL MODELS

05140A - PUMP & GAUGE ASSY,FUEL TANK

MR271471 - 02/1997-08/2000

MR134431 - 09/1994-01/1997

05145 - GAUGE UNIT,FUEL TANK

MR172633 - ALL MODELS

05188 - VALVE,FUEL FILLER NECK

MB867389 - ALL MODELS

05261 - GASKET,FUEL TANK PUMP

MB400461 - ALL MODELS

05265B - HOSE,FUEL TANK

MS605158 - ALL MODELS

05265C - HOSE,FUEL TANK

MU601060 - ALL MODELS

05286 - GASKET,FUEL TANK

MB329078 - ALL MODELS

05289B - NUT,FUEL TANK

MS440501 - ALL MODELS

05289C - NUT,FUEL TANK

MS440504 - ALL MODELS

05291B - CLIP,FUEL TANK

MS660169 - ALL MODELS

05291C - CLIP,FUEL TANK

MS660163 - ALL MODELS

05291D - CLIP,FUEL TANK

MR160795 - ALL MODELS

05294 - TUBE,FUEL RETURN LINE

MB133481 - ALL MODELS

MB329259 - USE MB133481 INSTEAD

05298 - PLUG,FUEL TANK

MB527239 - ALL MODELS

05412 - HOSE,FUEL HIGH PRESSURE

MB845610 - 09/1994-01/1997

MR271474 - 02/1997-08/2000

05506 - FILTER,FUEL PUMP

MR160794 - ALL MODELS
