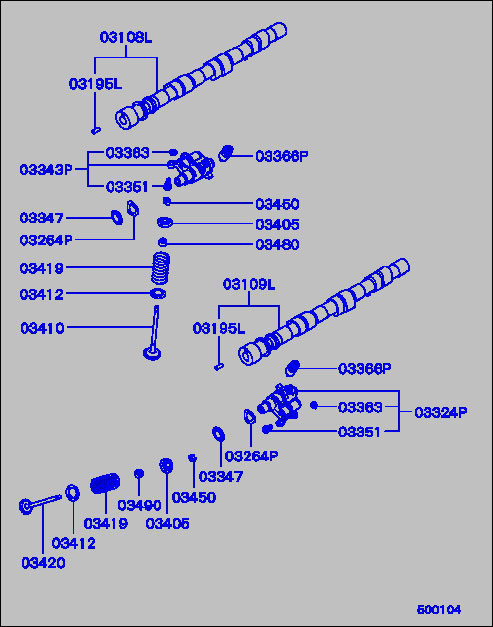

11-230-5 Camshaft Assembly (Non Mivec)
Model Legend
HNFHE - GP(MIVEC), 5FM/T, Feb96-May96
HNFH2D - GP (MIVEC), 5FM/T, May96-Feb97
HNFH3D - GP R(MIVEC), 5FM/T Feb97-
HNFH4D - GP R(MIVEC) 5FM/T, Nov97-
HNGHE - GPX(MIVEC), 5FM/T, Oct94-
HNGH2D - GPX COTY (MIVEC), 5FM/T, Apr95
HNHME - GR, 5FM/T, Oct94-
HNHM3D - GR, 5FM/T, May95-
HNHM4D - GR, 5FM/T, Feb96-
HNXME - GX, 5FM/T, Feb97-
HNXM4D - GX2, 5FM/T, Nov97-
HRFHE - GP(MIVEC), 4FA/T, Feb96-May96
HRFH2D - GP (MIVEC), 4FA/T, May96-Feb97
HRGHE - GPX(MIVEC), 4FA/T, Oct94-
HRGH2D - GPX COTY (MIVEC), 4FA/T, Apr95
HRHME - GR, 4FA/T, Oct94-
HRHM3D - GR, 4FA/T, May95-
HRHM4D - GR, 4FA/T, Feb96-
HYFH3D - GP R(MIVEC), 5FA/T, Feb97-
HYFH4D - GP R Aero(MIVEC), 5FA/T, Nov97-
HYGHE - GPX(MIVEC), 5FA/T, Feb97-
HYXME - GX, 5FA/T, Feb97-
HYXM4D - GX2, 5FA/T, Nov 97-
Parts List
03109R - CAMSHAFT,EXHAUST,RH
03195R - PIN,CAMSHAFT,RH
03264P
No matching part numbers found
03324P
No matching part numbers found
03343P
No matching part numbers found
03347 - GUIDE,ROCKER ARM SHAFT WAVE WASHER SPRIN11 230
03351 - ADJUSTING SCREW,ROCKER ARM
03363 - NUT,ROCKER ARM ADJUSTING SCREW LOCK
03366P
No matching part numbers found
03405 - RETAINER,VALVE SPRING
03410 - VALVE,INLET
03412 - SEAT,VALVE SPRING
03419 - SPRING,INLET & EXHAUST VALVE
03420 - VALVE,EXHAUST
03450 - LOCK,VALVE SPRING RETAINER
03490 - SEAL,EXHAUST VALVE STEM
